Step-by-Step Instructions on Diagnosing Electrical Issues Using a Multimeter
Electrical issues in vehicles can be perplexing and challenging to diagnose without the proper tools. A digital multimeter is an essential device for troubleshooting and resolving electrical problems efficiently. This comprehensive guide will provide step-by-step instructions on how to use a digital multimeter on your car, helping you diagnose issues confidently.
Understanding the Digital Multimeter
A digital multimeter (DMM) is a versatile tool that measures electrical properties such as voltage, current, and resistance.
Key Functions
- Voltage Measurement (Volts)
- Current Measurement (Amperes)
- Resistance Measurement (Ohms)
- Continuity Testing
For a deeper understanding of multimeters, read our article on Understanding and Using Automotive Multimeters.
Safety Precautions
- Wear Safety Gear: Use safety glasses and gloves.
- Disconnect Battery: When measuring resistance or continuity.
- Avoid High Voltage Areas: Unless properly trained.
For more on safety, refer to Essential Safety Equipment for Automotive Workshops.
Tools and Equipment Needed
- Digital Multimeter
- User Manual
- Test Leads
- Vehicle's Service Manual
Step-by-Step Guide
Step 1: Familiarize Yourself with the Multimeter
- Display Screen: Shows readings.
- Selection Dial: Choose the measurement type.
- Input Jacks: Where test leads are connected.
Step 2: Inspect the Multimeter and Leads
- Check for Damage: Ensure leads and the device are in good condition.
- Battery Check: Replace if necessary.
Measuring Voltage
Purpose
To check the voltage of the car battery or other components.
Procedure
-
Set the Multimeter
- Turn the dial to the DC voltage (V⎓) setting.
- Select a range higher than the expected voltage (e.g., 20V for a 12V battery).
-

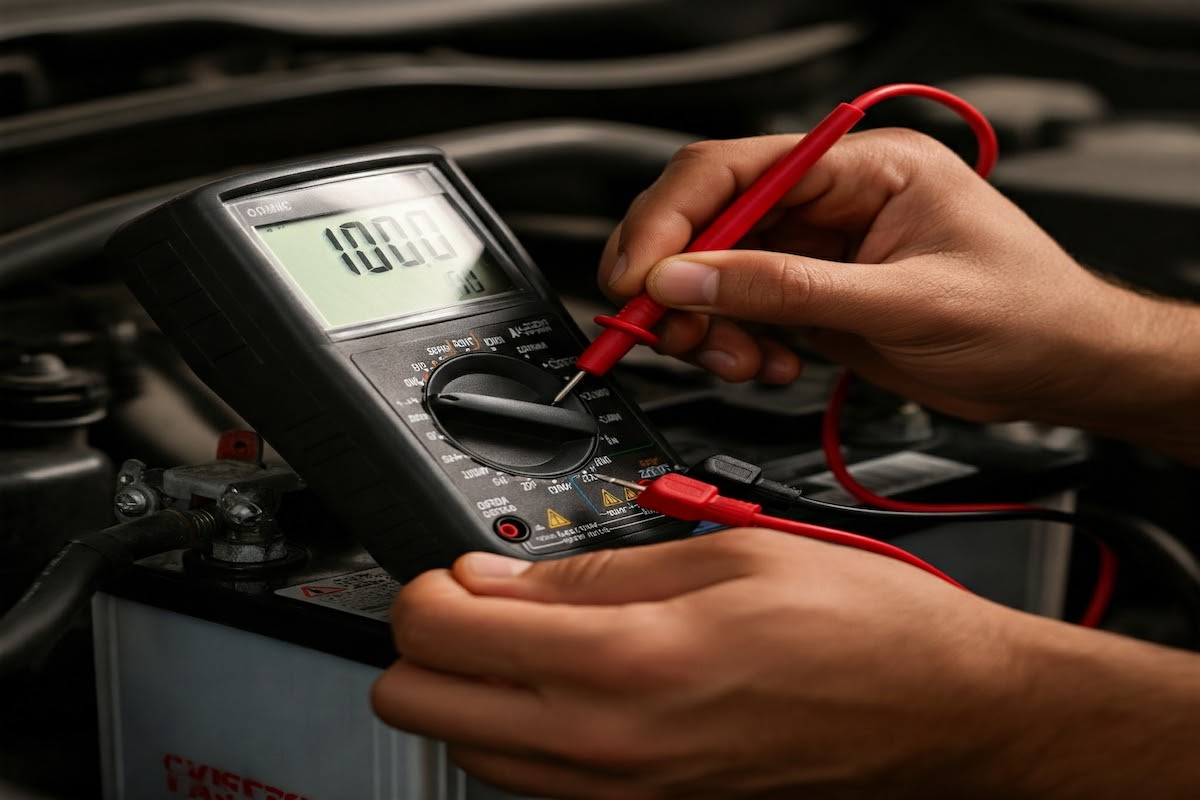

Connect Test Leads
- Red Lead: Positive terminal.
- Black Lead: Negative terminal.
-
Read the Display
- A healthy car battery should read between 12.4V to 12.7V when the engine is off.
Diagnosing Results
- Below 12V: Battery may be discharged.
- Above 12.7V: Overcharging issues.
Measuring Current
Purpose
To detect parasitic drains or verify current flow in circuits.
Procedure
-
Set the Multimeter
- Turn the dial to the DC current (A⎓) setting.
- Use the appropriate range.
-
Prepare the Circuit
- Disconnect the battery's negative terminal.
-
Connect in Series
- Place the multimeter in series between the negative battery terminal and the disconnected cable.
-
Read the Display
- Normal parasitic drain is around 50mA.
Diagnosing Results
- Higher than 50mA: Potential electrical drain.
Measuring Resistance
Purpose
To check the integrity of wires and components.
Procedure
-
Set the Multimeter
- Turn the dial to the resistance (Ω) setting.
-
Disconnect Power
- Ensure the circuit is not powered.
-
Connect Test Leads
- Across the component or wire being tested.
-
Read the Display
- Low resistance indicates good continuity.
Continuity Testing
Purpose
To verify that a circuit is complete.
Procedure
-
Set the Multimeter
- Select the continuity test mode (speaker icon).
-
Connect Test Leads
- Across the two points of the circuit.
-
Listen for Beep
- A beep indicates continuity.
Common Automotive Applications
Testing Fuses
- Remove Fuse: From the fuse box.
- Continuity Test: A beep indicates the fuse is good.
Checking Sensors
- O2 Sensors, Throttle Position Sensors: Measure voltage or resistance as per the service manual.
Diagnosing Battery and Alternator
- Battery Voltage: As described earlier.
- Alternator Output: Measure voltage with the engine running; should be around 13.8V to 14.4V.
Tips and Best Practices
- Consult the Service Manual: For specific values and procedures.
- Use Proper Range Settings: To ensure accurate readings.
- Record Your Findings: Helps in tracking issues.
Advanced Diagnostics with a Multimeter
Testing for Voltage Drops
- Purpose: Identify high resistance in circuits.
- Procedure: Measure voltage across connectors and grounds while the circuit is loaded.
Checking Diode Functionality
- Diode Test Mode: Some multimeters have a specific setting.
Multimeter Maintenance
- Regular Calibration: Ensures accuracy.
- Battery Replacement: As needed.
- Proper Storage: Keep in a protective case.
Choosing the Right Multimeter
Consider features like:
- Auto-Ranging: Simplifies usage.
- Backlit Display: For low-light conditions.
- Durability: Rugged design for automotive environments.
For recommendations, see DIY vs. Professional Tools: What's the Difference?.
The Role of Multimeters in Modern Vehicles
With the advent of electric vehicles, understanding electrical diagnostics is more critical than ever.
- High-Voltage Systems: Require specialized training and equipment.
- Insulated Tools: Essential for safety.
Explore The Impact of Electric Vehicles on the Auto Repair Industry for more insights.
Conclusion
Mastering the use of a digital multimeter is a valuable skill for any mechanic or DIY enthusiast. It empowers you to diagnose and resolve electrical issues effectively, saving time and money. Always prioritize safety, consult your vehicle's service manual, and practice regularly to enhance your proficiency.
